2026 Chinook RV

MAVERICK AWD 4S SPECIFICATIONS

​​

Dimensions

• Exterior Length – 24’ 5”

• Exterior Body Width – 7’ 4”

• Exterior Height – 10’ 6” with A/C

• Interior Height – 6’ 3”

Weights

• GVWR – 11,000 lbs.

• GCWR – 15,000 lbs.

• Hitch Rating – 5,000 lbs.

• Tongue Weight – 500 lbs.

• Average Dry Weight – 9,780 lbs.

Tank Sizes

• Fuel – 31 Gallons

• Fresh – 30 Gallons

• Grey – 24 Gallons

• Black – 24 Gallons

Chassis Standards

• Ford Transit with AWD, 3.5L Eco Boost Twin-Turbo Gas Engine

• 10 Speed Transmission

• Navigation

• Safety Features including Collision Warning, Lane-Keeping System & Side-Wind Stabilization

• 31 Gallon Fuel Tank

• Preferred Equipment Package

• Tow Package

• Ford Aluminum Wheels

Maverick 360 Standards

• Truma Aventa 13.5 BTU A/C with Built-in Dehumidifier

• Thermal Suppression System

• Timberline 1.0 Gas Fired Hydronic Heat & On-Demand Hot Water System

• Electronic Systems Solution by Wellspring Components

• Expion 360 900 amp/hr. Lithium Battery System ( 10.8KWH)

• Victron 3000-Watt Inverter with Charger & Cerbo Touch Screen Monitor

• 600-Watt Solar Panel System with Victron Solar Charger

• 4 Solar Panel Plug-in Ports in Exterior Side-Bay (480 Watts of Additional Solar Capability)

• High Output 2nd Alternator with Gen Delete

• .055 Aluminum Roof & Sidewall Skins Bonded with Sika Adhesive

• Full Body Paint

• Double Pane Automotive Design Windows with Openable Section & Screens

• 2" x 4" Welded Steel Subfloor Assembly, Mounted on Rubber Isolator Pads

• 1 Piece Composite Subfloor & 1 Piece Composite Roof

• 4-Point Leveling System

• Norcold / Thetford 6.2 cu ft Electric

• Double Induction Cooktop

• Smart Plug Detachable 30 Amp Power Cord

• Solid Surface Countertops, Shower & Porcelain Toilet

• Soft Touch, Padded Vinyl Finishing

• Starlink or Winegard Equipped as Built

​​

Options

• 4 Camera System

• ARB Air Compressor

• Rear Entry Door Power Awning

• Optional 3rd Epion 450 amp/hr

• Cummins Onan 4,000-Watt Gas Generator (360 Models only)

• Black Out Package (Black Wheels, A/T Tires, Black Handles)

• Cub Blind Spot Detection System

• Leveling Suspension Kit (2" Aluminum Front Lift Spacer)

• Altitude Suspension Kit (Rear 2" Aluminum Lift Spacer, Fox Rear Shocks, 2" Front Lift Aluminum Spacer)

• Trail Hero Suspension Kit (Lower Control Arms, Progressive Leaf Springs, King 2.5 Coil Over Shock Kit & King 2.5 Rear Shocks)

• Twin Beds in place of Furniture (SS only)

Exterior Colors

• Standard Full Body Paint Colors

  • Grey/White with Orange Stripe​

  • Grey/White with Blue Stripe

  • Silver with White Stripe

• Premium Full Body Paint Colors: Surcharge Applies

  • ​Orange with Grey Stripe

  • Burgundy with Silver Stripe

  • Morning Haze with Morning Haze Stripe

  • Mudbath with Orange Stripe

Interior Colors​

• Walnut Chiffon

• Nizza​

• Cortana Beige

• Madera Cream

​

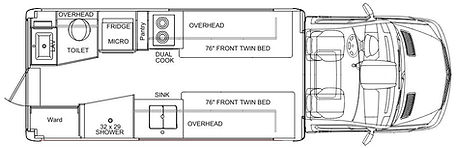

Floorplans

• Maverick SS: Powered Single Sofa with Transformable Sofa/Dinette

• Maverick EB: Eddy Bed with Transformable Sofa/Dinette

• Maverick FTB: Option for Front Twin Beds

​

Motorhome Warranty

• 2 Years / 30,000 Miles

​

Specs are subject to change without notice
