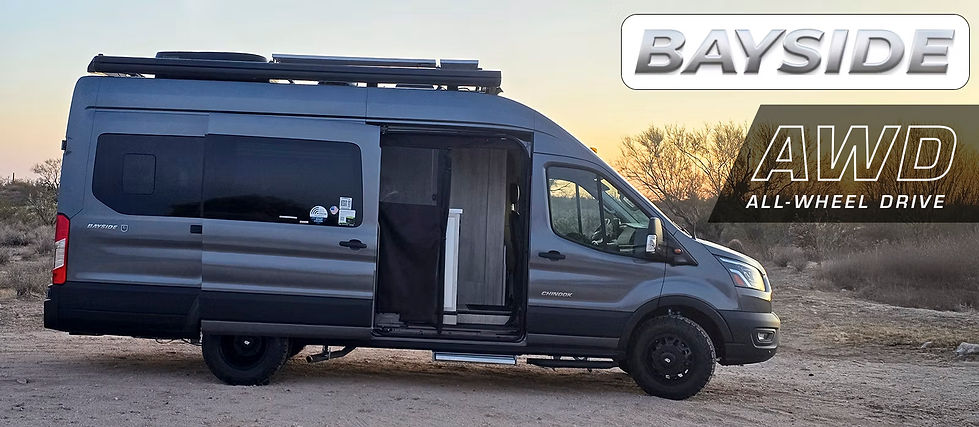

BAYSIDE
The AWD Chinook Bayside combines elegantly-appointed interior design features with state-of-the-art technology – ensuring both high-class function and style. The Bayside fulfills all your dreams to go anywhere in luxury!
Ford Transit 350HD with AWD
Starlink Internet Available with Online Package
High Quality CNC Cut Cabinetry
Fully Insulated with R9 Hushmat
Premium Padded Vinyl Finish
FLOOR PLANS

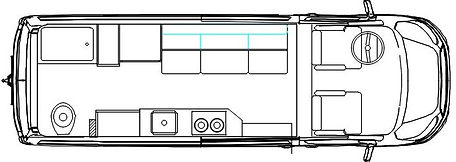

Bayside SS
Powered Front Single Sofa w/ capability to be Full Bed

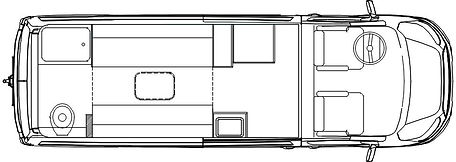

Bayside TB
Twin Beds with capability to be one Queen Bed

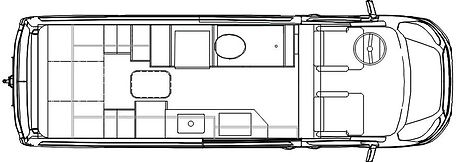

Bayside RS
Powered Rear Sofa with capability to be Queen Bed

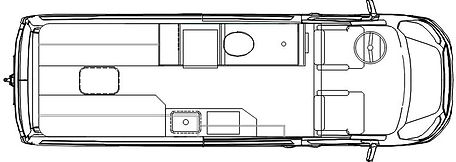

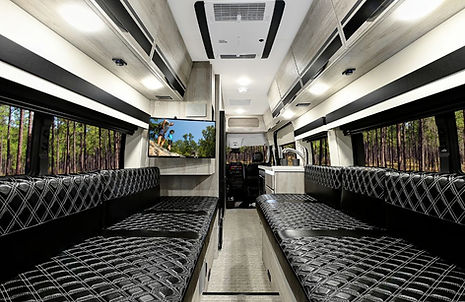

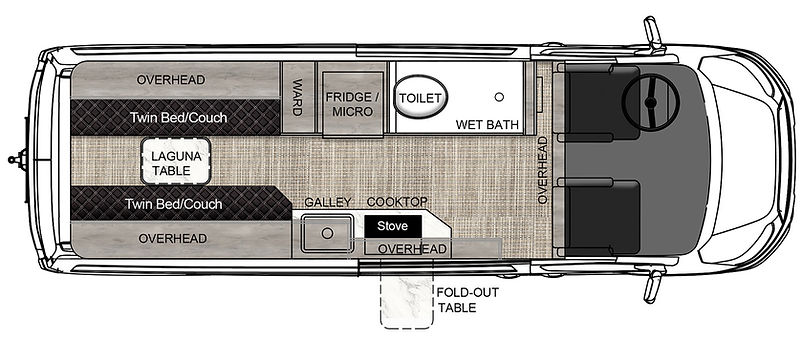

Bayside RT
Rear Twin Beds w/ capability to be one Queen Bed

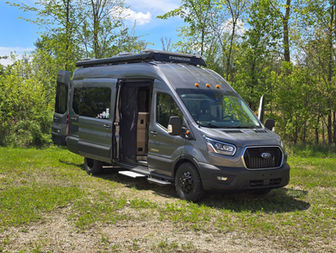

EXTERIOR GALLERY
2026 Chinook RV
BAYSIDE SPECIFICATIONS
Dimensions
-
Exterior Length – 21’ 11”
-
Exterior Body Width – 6’ 9”
-
Exterior Height – 10’ 2” with A/C
-
Interior Height – 6’ 3”
Weights
-
GVWR – 11,000 lbs.
-
GCWR – 13,000 lbs.
-
Hitch Rating – 5,000 lbs.
-
Tongue Weight – 500 lbs.
-
Average Dry Weight – 8,650 lbs.
Tank Sizes
-
SS & TB Model
-
Fuel – 31 Gallons
-
Fresh – 30 Gallons
-
Gray – 16 Gallons
-
Black – 6 Gallons
-
-
RS & RT Model
-
Fuel – 31 Gallons
-
Fresh – 30 Gallons
-
Gray
-
16 Gallons (Sink)
-
14 Gallons (Shower)
-
-
Black – 6 Gallons
-
Chassis Standards
-
Ford Transit Van 350HD with AWD, 3.5L Eco Boost Twin-Turbo Gas Engine
-
10 Speed Transmission
-
Navigation, Apple CarPlay, & Android Auto
-
360 Degree Back-Up Camera
-
Safety Features including Blind Spot Detection, Collision Warning, Lane-Keeping System & Side-Wind Stabilization
-
31 Gallon Fuel Tank
-
Preferred Equipment Package
-
Upfitter Package
-
Tow Package
-
Ford Aluminum Wheels
Bayside 360 Standards
-
Truma Aventa 13.5 BTU A/C with Built-in Dehumidifier
-
Timberline 1.0 Gas Fired Hydronic Heat & On-Demand Hot Water System
-
Electronic Systems Solution by Wellspring Components
-
Victron 3000-Watt Inverter with Charger & Cerbo Touch Screen
-
300-Watt Solar Panel System with Victron Solar Charger
-
High Output 2nd Alternator with Gen Delete
-
Expion 360 648 amp/hr. Lithium Battery System ( 7.78KWH)
-
Thermal Suppression System
-
Girard 12 ft Awning with Built in Wind Sensor
-
1 Piece Composite Subfloor
-
Fully Insulated with Sound Dampening R9 Hushmat
-
Norcold / Thetford 6.2 cu ft Electric
-
Double Induction Cooktop (SS, RS, & RT) (Single included with TB)
-
Convection Microwave
-
Smart TV
-
Smart Plug Detachable 30 Amp Power Cord
-
Solid Surface Countertops & Porcelain Toilet
-
Premium Soft Touch, Padded Vinyl Finishing
-
Front & Rear Bug Screens
-
Two Seatbelts in Rear Sleeping Area
Options
-
Opening Rear Windows (SS, RS & RT)
-
Mid Window (TB only)
-
Online Package (Starlink Standard)
-
Adventure Package (includes Roof Rack, Side Ladder, Nerf Steps)
-
Black Out Package (Black Wheels, A/T Tires)
-
Leveling Suspension Kit (2" Aluminum Front Lift Spacer)
-
Altitude Suspension Kit (Rear 2" Aluminum Lift Spacer, Fox Rear Shocks, 2" Front Lift Aluminum Spacer)
-
Trail Hero Suspension Kit (Lower Control Arms, Progressive Leaf Springs, King 2.5 Coil Over Shock Kit & King 2.5 Rear Shocks)
-
Cummins Onan 2.8kw Gas Generator (360 Models only)
Exterior Colors
-
Oxford White
-
Ingot Silver
-
Carbon Metallic Gray
-
Blue Metallic Silver
Interior Colors
-
Soho
-
Walnut Chiffon
-
Nizza
Floorplans
-
Bayside SS: Powered Front Single Sofa with Capability to be Full Bed
-
Bayside TB: Twin Beds with Capability to be one Queen Bed
-
Bayside RS: Powered Rear Sofa with Capability to be Queen Bed
-
Bayside RT: Rear Twin Beds with Capability to be one Queen Bed
Motorhome Warranty
-
2 Years / 30,000 Miles
Specs are subject to change without notice
