The Perfect Blend of Luxury and Adventure

MAVERICK SPECIFICATIONS

​

Dimensions
Exterior length - 24’ 5”
Exterior body width 88”
Exterior Height 10’ 6” w/ A/C
Interior Height 6’ 3”

Weights
GVWR – 11,000 lbs.
GCWR – 15.000 lbs.
Hitch Rating – 5000 lbs.
Tongue weight – 500 lbs.
Average Dry Weight – 9,780 lbs.

Holding Tank Size
Fresh – 30 Gallons
Gray – 24 Gallons
Black – 24 Gallons

Chassis Standards
- Ford Transit 350HD w/ AWD, 3.5L Eco Boost Twin-Turbo Gas Engine
- 10 Speed Transmission
- Navigation
- Safety features including collision warning, lane keeping system & side-wind stabilization
- 31 Gallon Fuel Tank
- Preferred Equipment Package
- Tow Package
- Ford Aluminum Wheels

Maverick Package Standards
- Dometic Penguin II A/C
- Thermal Suppression System
- Timberline 1.0 Diesel Fired Hydronic Heat & On-Demand Hot Water System
- Xantrex 3000-Watt Inverter
- 400-Watt Merlin Solar Panel System w/ Solar Charger & Display
- Cummins Onan Gas Generator (STD on non-Lithium Models Only)
- AGM House Batteries 400 Amp Hours
- Echo Charger (Dual Battery Bank Charging, Charges House & Chassis Batteries)
- .055 Aluminum Roof & Sidewall Skins Bonded w/ Sika Adhesive
- Full Body Paint
- Double Pane Automotive Design Windows w/ Openable Section & Screens
- 2" x 4" Welded Steel Subfloor Assembly, Mounted on Rubber Isolator Pads
- 1 Piece Composite Subfloor & 1 Piece Composite Roof
- 4-point Leveling System
- Norcold / Thetford 6.2 cu ft Electric
- Induction Cooktop, Removable for Exterior Cooking
- Smart Plug - Detachable 30 Amp Power Cord
- Solid Surface Countertops, Shower, & Porcelain Toilet
- Soft Touch, Padded Vinyl Finishing

Maverick 360 Standards
- Maverick Package – Plus Below!!
- Electronic Systems Solution by Wellspring Components
- Expion 360 900 amp/hr. Lithium Battery System (10.8 KWH)
- High Output 2nd alternator w/ Gen Delete.
- Victron 3000-Watt Inverter w/ Charger & Cerbo Touch Screen Monitor
- 600-Watt Solar Panel System w/ Victron Solar Charger
- High output 2nd alternator w/ Gen Delete.
- Truma Aventa 13.5 BTU A/C with Built in Dehumidifier
- 4 Solar Panel Plug-in Ports in Exterior Side-Bay (480 Watts of Additional Solar Capability)

Note:
-The Maverick 360 Includes the Truma Aventa A/C IPO the Dometic A/C, & Victron components IPO of Xantrex & Merlin components. The Echo Charger is also removed & replaced with Battery Boost.

​

********

OPTION YOUR FORD TRANSIT LIKE NO OTHER

********

Options
- 4 Camera System
- Online Package (Winegard Starlink System)
- Optional 3rd Expion 450 amp/hr (360 Models Only)
- Cummins Onan 4,000-Watt Gas Generator (360 Models Only)
- Black Out Package (Black Wheels, A/T Tires, Black Handles)
- Cub Blind Spot Detection System
- Leveling Suspension Kit (2-inch Aluminum Front Lift Spacer)
- Altitude Suspension Kit (Rear 2-inch Aluminum Lift Spacer, Fox Rear Shocks, 2-Inch Front Lift Aluminum Spacer)
- Trail Hero Suspension Kit (Lower Control Arms, Progressive Leaf Springs, King 2.5 Coil Over Shock Kit & King 2.5 Rear Shocks)

Exterior Colors
-By Paint Scheme

Interior Colors
-Maple
-Walnut Chiffon
-Nizza
-Cortana Beige

Floorplans
- Maverick DS = Powered Single Sofa & Stationary Sofa

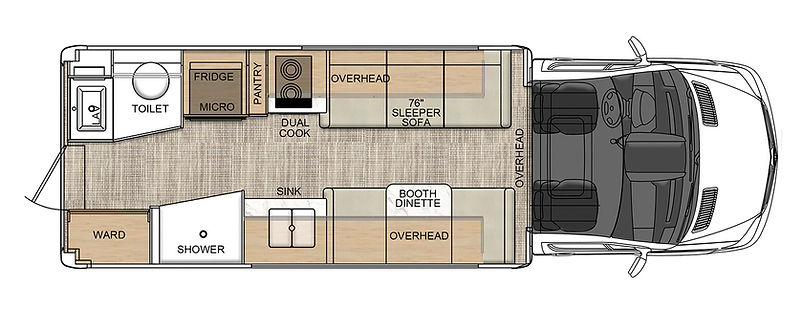

- Maverick SS = Powered Single Sofa & Booth Dinette

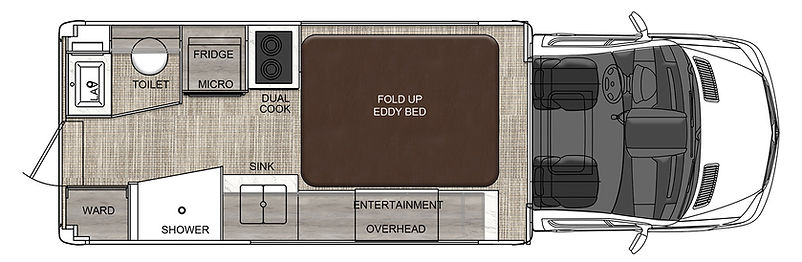

- Maverick EB = Eddy Bed Floorplan w/ Transformable Sofa/Dinette

Motorhome Warranty
2 Years / 30,000 Miles
