Summit by Chinook RV Manufacturer Peru IN

SUMMIT

The Summit is unique: handcrafted because you demand quality, stylish because you appreciate distinction.

There is a parking spot awaiting you and your Summit. It's off the beaten path, away from traffic, by the creek, in the mountains instead of in a crowded campground 100 miles away. The Summit will take you places larger motorhomes simply cannot go. It so nimble and maneuverable, you can parallel park it on a city street - though we recommend the mountain creek!

Mercedes Benz Sprinter

4 Seasons Certified

Solid Surface Countertops & Shower

Premium Vinyl Padded Finish

Ample Outside Storage

FLOOR PLANS

SUMMIT SPECIFICATIONS

Dimensions
Exterior length - 23’ 9”
Exterior body width 88”
Exterior Height 10’ 6” w/ A/C
Interior Height 6’ 3”

Weights
GVWR – 11,030 lbs.
GCWR – 15,250 lbs.
Hitch Rating – 5000 lbs.
Tongue weight – 500 lbs.
Average Dry Weight – 9,380 lbs.

Holding Tank Size
Fresh – 30 Gallons
Gray – 24 Gallons
Black – 24 Gallons

Chassis Standards
- Mercedes-Benz Sprinter w/ 4-Cyl Twin-Turbo Diesel Engine
- 9 Speed Transmission
- Alcoa Aluminum Wheels
- Navigation
- Driver Convenience package
- Safety features including collision warning, lane keeping system & side-wind stabilization.
- 25 Gallon Fuel Tank
- Premium & Comfort Plus Packages
- Tow Package

Summit 360 Standards
- Truma Aventa 13.5 BTU A/C with Built in Dehumidifier
- Thermal Suppression System
- Timberline 1.0 Gas Fired Hydronic Heat & On-Demand Hot Water System
- Electronic Systems Solution by Wellspring Components
- Victron 3000-Watt Inverter w/ Charger & Cerbo Touch Screen Monitor
- 600-Watt Solar Panel System w/ Victron Solar Charger
- High output 2nd alternator w/ Gen Delete.
- Expion 360 900 amp/hr. Lithium Battery System (10.8 KWH)
- 4 Solar Panel Plug-in Ports in Exterior Side-Bay (480 Watts of Additional Solar Capability)
- .055 Aluminum Roof & Sidewall Skins Bonded w/ Sika Adhesive
- Full Body Paint w/ Painted Scheme
- Double Pane Automotive Design Windows w/ Openable Section & Screens
- 2" x 4" Welded Steel Subfloor Assembly, Mounted on Rubber Isolator Pads
- 1 Piece Composite Subfloor & 1 Piece Composite Roof
- 4-point Leveling System
- Norcold / Thetford 6.2 cu ft Electric
- Single Induction Cooktop, Removable for Exterior Cooking
- Smart Plug - Detachable 30 Amp Power Cord

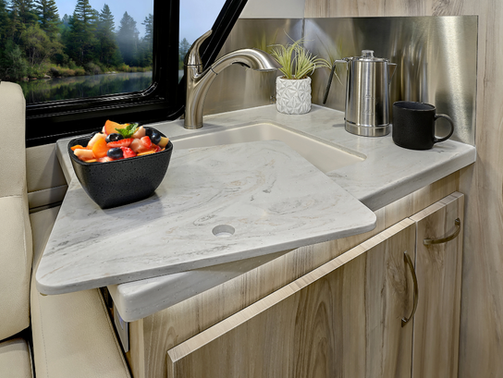

- Solid Surface Countertops, Shower, & Porcelain Toilet
- Soft Touch, Padded Vinyl Finishing

Options
- 4 Camera System
- Online Package (Winegard Starlink System)
- Optional 3rd Expion 450 amp/hr
- Cummins Onan 3,200-Watt Diesel Generator
- Black Out Package (Black Wheels, A/T Tires, Black Handles)
- Cub Blind Spot Detection System
- AWD Mercedes Benz Sprinter Chassis

Exterior Colors
-By Paint Scheme

Interior Colors
-Maple
-Walnut Chiffon
-Nizza
-Cortana Beige

Floorplans
- Summit DS = Powered Single Sofa & Stationary Sofa

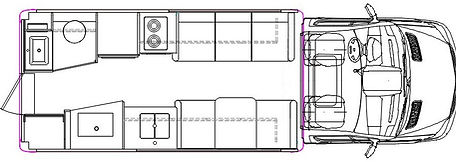

- Summit SS = Powered Single Sofa & Booth Dinette

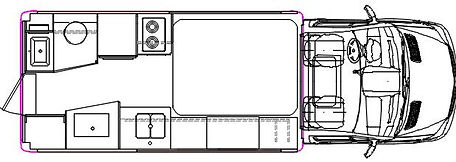

- Summit EB = Eddy Bed Floorplan w/ Transformable Sofa/Dinette

Motorhome Warranty
2 Years / 30,000 Miles
